Automatic Pouch Packing Machine Selection Guide (Part 2) — Detailed Explanation of the Full Series of Premade Pouch Packaging Machines
Chapter Introduction
To help you comprehensively understand the key points for selecting an automatic pouch packing machine, we have divided the content into three parts. Part 1 introduces company strength and the core advantage comparison between roll film machines and premade pouch machines; Part 2 provides a detailed analysis of the full range of premade pouch packaging machine models and features; Part 3 continues to introduce the roll film packaging machine series and provides the ultimate selection guide. You can read continuously or directly refer to the corresponding chapter according to your needs.
Huapack Full Series of Horizontal Packaging Machine Product Matrix
After more than ten years of technological accumulation and product innovation, Huapack has formed a complete product matrix of automatic pouch packing machines, divided into two major series: premade pouch packaging machines and horizontal film fill seal machines, covering most packaging needs in the market. No matter what product you need to package or what type of bag you need, Huapack can provide you with a suitable solution.
Premade Pouch Packaging Machine Series
Huapack's premade pouch packaging machines adopt a mature cam mechanical control system, which operates stably and is easy to operate. They can realize fully automatic production from bag taking, bag opening, filling, sealing to finished product output. According to different functions and application scenarios, Huapack's premade pouch packaging machines can be divided into the following multiple series:
- Models: 180G, 210G, 240G
- Applicable Bag Width: 60-240mm
- Packaging Speed: 30-60 packs per minute
- Applicable Weight: 10-2000g
- Applicable Bag Types: Three-side seal/four-side seal flat pouches, stand-up pouches, special-shaped pouches, eight-side seal pouches, double pouches
- Features: Divided according to different packaging bag widths, with a wide range of applications and high cost performance. It can meet the production needs of most enterprises, and can be equipped with additional devices such as coding, weighing and detection according to customer requirements.
Real Case: A medium-sized condiment enterprise in France produces 500g bottles of tomato sauce in stand-up pouches. They chose Huapack's 210G standard premade pouch packaging machine, which operates at a speed of 45 packs per minute. The equipment has been running stably for 3 years with a failure rate of less than 0.5%. The enterprise has saved 20% in labor costs and increased production efficiency by 30% compared with the original semi-automatic equipment.
- Model: 240G-5
- Applicable Bag Width: 70-240mm
- Packaging Speed: 30-60 packs per minute
- Applicable Weight: 10-2000g
- Applicable Bag Types: Three-side seal/four-side seal pouches, stand-up pouches, special-shaped pouches, eight-side seal pouches, double pouches
- Features: Adopts a five-station horizontal design with a more compact structure, faster speed and higher stability. Compared with the standard eight-station design, the five-station design simplifies the station layout and improves production efficiency, making it particularly suitable for medium and high-speed production scenarios.
- Models: 180GZ, 210GZ, 240GZ, 280GZ, 330GZ
- Applicable Bag Width: 90mm-440mm
- Packaging Speed: 25-60 packs per minute
- Applicable Weight: 10-8000g
- Applicable Bag Types: All zipper pouches, including three-side seal/four-side seal zipper pouches, stand-up zipper pouches
- Features: Zipper pouches are mainly used for the packaging and storage of various foods, which can effectively isolate air and moisture and extend the shelf life of food. In response to the packaging needs of zipper pouches, Huapack has carried out special design in the equipment structure. To prevent zipper pouches from accidentally closing during transportation, Huapack's packaging machines are equipped with a special zipper opening mechanism. This mechanism starts before material filling to ensure that the zipper pouch can be fully opened, thereby achieving a flat and beautiful sealing effect.
Real Case: A large nut processing enterprise in the United States produces 1kg stand-up zipper pouches of mixed nuts. They chose Huapack's 280GZ zipper pouch premade pouch packaging machine, which operates at a speed of 35 packs per minute. The equipment's special zipper opening mechanism has effectively solved the problem of zipper accidental closure, and the product qualification rate has increased from 92% to 99.2%. The enterprise's annual output has reached 15 million packs, and the market share has increased by 8%.
- Models: 180GP, 210GP, 240GP, 280GP, 330GP
- Applicable Bag Width: 80mm-330mm
- Packaging Speed: 20-45 packs per minute
- Applicable Volume: 50-3000ml
- Applicable Bag Types: Spout pouches, including straight spout pouches and angled spout stand-up pouches
- Features: The equipment integrates a spout insertion device, which is mainly composed of a vibration plate, spout conveying mechanism and spout insertion mechanism. It can automatically complete the sorting, conveying, insertion and welding of spouts, with high welding strength and good sealing performance. It is particularly suitable for packaging liquid and semi-fluid products such as beverages, sauces and laundry detergents.
5. Premade Pouch Packaging Machine with Paging Machine
- Models: 180G-F, 210G-F, 240G-F, 280G-F, 330G-F, 400G-F, 460G-F
- Bag Width: 90mm-440mm
- Packaging Speed: 20-50 packs per minute
- Applicable Weight: 10-8000g
Three Recommended Types of Paging Machines:
Material Characteristics (Thin, Soft, Slippery): If the bag surface is smooth, prone to static electricity or mutual adsorption and adhesion, adsorption-type or top-suction paging machines are recommended. This type of equipment can reliably suck bags one by one, effectively avoiding double or multiple sheets being separated at the same time. Although friction-type paging machines can be applied, they have higher requirements for the friction coefficient of the bag surface. For "thin, soft and slippery" materials, adsorption-type or top-suction should be preferred.
Bag Structure (Irregular/With Attachments): First determine whether the bag is of regular shape. For bags with zippers, spouts, handles or buckles, as well as bags that cannot be placed flat, it is also recommended to prefer paging machines (adsorption-type or top-suction is better).
Size Specifications (Too Large/Easy to Collapse): For bags that are too large and have insufficient support and are easy to collapse, it is recommended to use a paging machine. Specific length, width and thickness need to be provided so that the supplier can match the appropriate model.
Features: Equipped with a special paging machine, which can automatically separate stacked premade pouches to ensure that only one bag is taken each time. It effectively avoids the problem of multiple bags sticking together, improving the operational stability of the equipment and the finished product rate.
- Models: 180DG, 210DG, 240DG, 280DG, 330DG, 400DG, 460DG
- Applicable Bag Width: 60mm-220mm
- Packaging Speed: 50-100 packs per minute
- Applicable Weight: 10-1000g
- Applicable Bag Types: Three-side seal/four-side seal, stand-up pouches, spout pouches, zipper pouches, special-shaped pouches, eight-side seal pouches
- Features: Adopts a dual-outlet (one-outlet-two) design. Compared with the standard model, the packaging speed is doubled, and two bags can be packaged at the same time, greatly improving production efficiency. Under the same output, the equipment layout is more compact, and the floor area is significantly reduced; at the same time, the number of equipment and operating personnel requirements are reduced, effectively saving labor costs, making it particularly suitable for enterprises with large-scale production.
Real Case: A large beverage enterprise in the United Kingdom produces 250ml angled spout stand-up pouches of fruit juice. They originally used two standard single-outlet premade pouch machines with a total speed of 80 packs per minute, requiring 4 operators. After switching to one Huapack 240DG dual-outlet premade pouch packaging machine, the speed reached 90 packs per minute, only requiring 2 operators. The enterprise saved 50% in labor costs, reduced the equipment floor area by 40%, and the annual production capacity increased by 12.5%.
- Models: 400QG, 450QG
- Applicable Bag Width: 400mm-450mm
- Packaging Speed: 120-180 packs per minute
- Applicable Weight: 10-120g
- Applicable Bag Types: Three-side seal/four-side seal, stand-up pouches, special-shaped pouches, zipper pouches, spout pouches
- Features: Adopts a four-outlet parallel design, and the whole machine packaging speed can reach 180 packs per minute. Through high-precision synchronous control, it ensures that the bag feeding, bag opening, filling and sealing actions of the four channels are accurately consistent, and the finished product stability and uniformity are excellent. This model is particularly suitable for large-scale production enterprises with extreme requirements for production efficiency, such as large food processing plants and daily necessities manufacturing enterprises.
Summary of Huapack Four-Outlet Equipment Advantages:
Efficient Production Capacity: Four stations operate synchronously, and the single-machine production capacity can replace multiple standard equipment to meet the needs of large-scale continuous production.
Compact Layout: Under the same output, the equipment floor area is much smaller than the combination of multiple single machines, improving plant utilization.
Labor Saving: Reduces the number of equipment and operating stations, and one person can complete multi-station monitoring, significantly reducing labor costs.
- Models: 180G12, 240G12, 280G12, 180DG12, 240DG12, 280DG12
- Applicable Bag Width: 60mm-280mm
- Packaging Speed: 30-80 packs per minute
- Applicable Weight: 10-5000g
- Applicable Bag Types: Three-side seal/four-side seal, stand-up pouches, zipper pouches, spout pouches, double pouches, special-shaped pouches, eight-side seal pouches

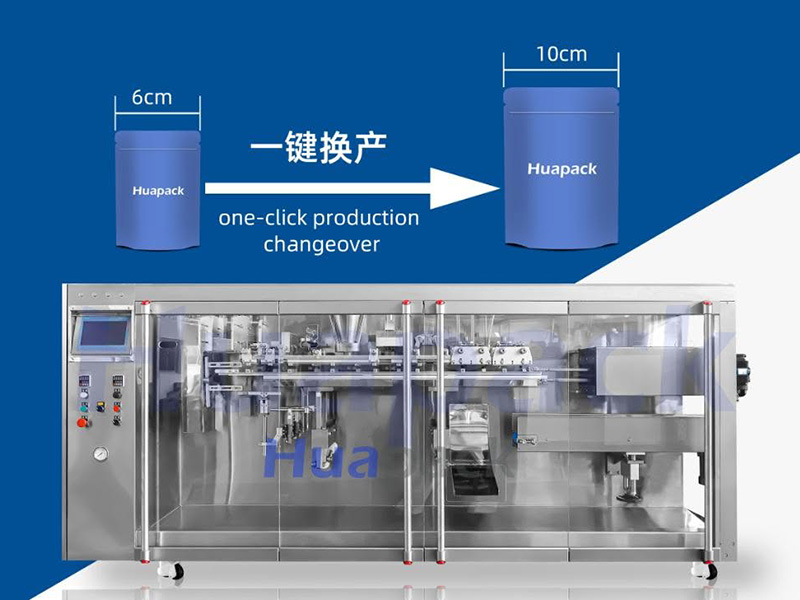

- Features: Independently developed automatic clamp adjustment system, supporting one-click changeover. The changeover process only takes 3 seconds to complete: the operator selects the corresponding bag type parameters on the touch screen, and the system automatically adjusts the position and opening of the bag clamp without any manual intervention. This function is particularly suitable for contract processing enterprises and production scenarios with a wide variety of products, significantly improving equipment flexibility under the multi-variety and small-batch production mode, and effectively reducing the labor intensity of operators.
- Model: T24-150
- Applicable Bag Width: 150mm
- Packaging Speed: 60-150 packs per minute
- Applicable Weight: 10-500g
- Applicable Bag Types: Three-side seal/four-side seal, stand-up pouches, special-shaped pouches, zipper pouches, spout pouches, double pouches
- Features: Adopts the latest flexible design concept and can be widely adapted to various bag types and materials. This model is a circular packaging machine that adopts a one-way cycle operation mode, avoiding mechanical shocks caused by reciprocating motion, significantly reducing equipment wear and extending the service life of core components. The equipment has high-speed and multi-material parallel packaging capabilities, and can simultaneously complete the precise filling of up to 18 different materials, with each filling unit independently controlled to ensure high-precision metering requirements. It is particularly suitable for industries with strict requirements for packaging accuracy, cleanliness and multi-variety switching, such as the pharmaceutical industry.
Chapter Explanation
This article belongs to the "2026 Automatic Pouch Packing Machine Selection Guide" series, which is divided into three parts. This part explains each series of premade pouch packaging machines in detail; Part 3 will introduce Huapack roll film packaging machine series and provide selection suggestions. Please stay tuned.
