Lightweight, portable and eye-catching on retail shelves, spouted pouches have gradually replaced rigid plastic bottles and glass jars, becoming mainstream flexible packaging materials across global manufacturing sectors. As market demand surges, manufacturers urgently seek stable, cost-efficient spout pouch filling machine and high-performance spouted pouch packing machine to upgrade their production lines.
Shanghai Huacheng Packing Machinery Co., Ltd. (Huapack) develops integrated Spouted Pouch Packaging Solutions that match diverse production demands, including three core equipment ranges: the 180SP roll film form-fill-seal unit, the 180GP premade pouch filler and the ZGY-3000 filling & capping machine. Every set of our spout pouch packing machine is tailor-built to resolve common industry pain points in food & beverage, daily chemicals, and medical & healthcare production. This guide sorts out equipment specs, real application cases and direct purchasing recommendations for buyers looking to invest in a professional spout pouch filling machine or full Spouted Pouch Packaging Solutions.

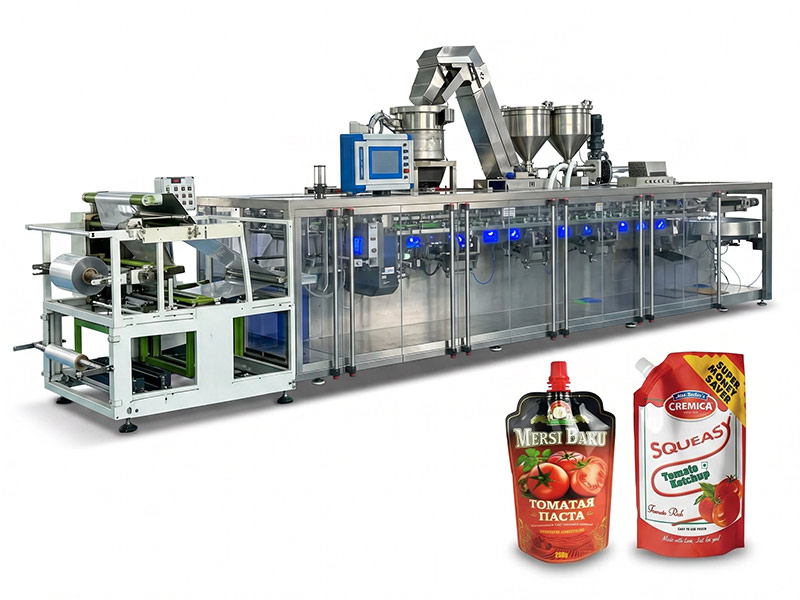

I. 180SP Series: Inline Roll Film FFS All-in-One Spouted Pouch Packing Machine
The 180SP roll film machine is a fully automatic integrated spouted pouch packing machine, combining roll film forming, automatic spout welding, precision filling and heat sealing in one continuous workflow. As the core model in Huapack’s full Spouted Pouch Packaging Solutions, this cuts extra costs from purchasing finished premade pouches and simplifies the whole production workflow.
Core Strengths
- Cost Saving: Material expenditure drops 20%–30% vs outsourcing premade spouted pouches (actual savings based on raw film material and daily output).
- Stable Throughput: Steady output of 30–90 bags/min under standard operation; multi-lane expansion available to boost capacity.
- Modular Layout: Quick format changeover, compact footprint and minimal manual operation.
- Versatile Metering: Matches liquid, sauce, puree and low-viscosity medical fluid with high filling precision.
1.1 Food & Beverage Industry: Versatile Spout Pouch Filling Machine for Liquid & Viscous Food
Food manufacturers rely on a hygienic, high-speed spout pouch filling machine to package juice, yogurt, condiments and baby puree without leakage or seal failure. Our 180SP spouted pouch packing machine is equipped with targeted functional modules for different food categories:
- Liquid Drinks (Juice, Iced Tea, Yogurt): Piston/flowmeter dosing with ±1.5ml accuracy, fitted with anti-drip suck-back nozzles to avoid spout residue.
- Thick Sauces (Ketchup, Mayonnaise, Honey): Optional auger feeding with insulated heated hoppers; built-in spout cleaning unit eliminates sauce contamination before sealing.
- Baby Food (Fruit Puree, Infant Formula): Totally enclosed feeding structure plus detachable CIP cleaning modules to meet strict food sanitation rules.
Real Case: Guatemala Ketchup Production Line Equipped with Huapack Spout Pouch Filling Machine
A high-end condiment brand producing 300g retail & catering ketchup pouches previously used manual filling equipment instead of an automated spout pouch filling machine.
- Pain Points: Manual premade pouch filling only hit 15 bags/min; leftover sauce on spouts caused a 3%–5% seal reject rate and massive material waste.
- Solution: Deploy the 180SP spouted pouch packing machine with auger metering, automatic spout cleaning and dual-station hot & cold welding.
- Client Feedback: Stable production speed raised to 30–35 bags/min. The production manager commented: “Huapack’s spout pouch packing machine delivers straight-standing pouches with perfect airtight seals, greatly lowering our defective product rate.”
1.2 Daily Chemicals: Eco-Friendly Spouted Pouch Packaging Solutions to Replace Rigid Bottles
Compared with HDPE hard bottles of equal volume, spouted pouches slash plastic consumption by around 70%, cutting warehousing and freight expenses significantly. Daily care formulas range widely in viscosity (1 cps water-based lotion to 100,000 cps thick paste), with foaming surfactants and mildly corrosive additives that demand robust, corrosion-resistant spout pouch filling machine. Our complete Spouted Pouch Packaging Solutions include customized 180SP configurations for cleaning supplies and cosmetics.
Household Cleaning Supplies (500ml–2000ml Laundry Detergent, Hand Soap, Dish Soap)
This spouted pouch packing machine supports dual or quadruple filling outlets, lifting maximum output above 120 bags per minute. Closed-loop heat sealing pressure control ensures even force distribution on large pouch sealing edges, preventing incomplete cold seals or film melting. The anti-foam back-suction filling head suppresses bubble generation during filling to stop bag mouth contamination. All product-contact parts adopt 316L stainless steel and PTFE gaskets for acid & alkali resistance.
High-End Cosmetics & Skincare (Serums, Lotions, Sunscreen, Small-Batch Premium Formulas)
Luxury skincare products demand ultra-precise dosing and flawless pouch appearance, making a servo-driven spout pouch filling machine essential. The 180SP series uses servo metering to control filling tolerance within ±1ml, ideal for 5–80ml small-volume cosmetic spouted pouches. Dual-station hot welding + instant cold forming delivers smooth, burr-free spout joints to prevent scratches. An optional HEPA laminar flow hood fits cosmetic GMP cleanliness standards, a key part of our full Spouted Pouch Packaging Solutions.
Travel-Size Care Products (30–100ml Shampoo, Body Wash)
E-commerce brands and OEM factories launching frequent promotional small batches need a flexible spout pouch packing machine. The 180SP model features auto-clamp adjustment: operators switch pouch width and length parameters on the touchscreen without manual screw tuning, cutting format change time in half.
1.3 Medical & Healthcare: Sanitary, Traceable Spout Pouch Filling Machine for Pharmaceutical Packaging
Medical liquids including oral solutions, disinfectants, eye drops and wound irrigation gel must comply with GMP, ISO 13485 and FDA packaging standards, requiring sterile, leak-proof production from a pharmaceutical-grade spouted pouch packing machine. Huapack’s full Spouted Pouch Packaging Solutions add dedicated sanitary modules to the 180SP series for medical-grade production:
- Full CIP Cleaning System: Pipework without dead corners enables full-line disinfection without disassembly, matching pharmaceutical closed-loop production requirements.
- UV-C Material Sterilization: Continuous ultraviolet irradiation along the pouch transport track reduces surface microbial count of packaging film.
- Explosion-Proof & High-Accuracy Configuration: Ceramic rotary piston pumps deliver ±0.5% filling precision for thin medical liquids; explosion-proof motors and anti-static grounding are optional for flammable disinfectant formulas.
Medical Industry Application Example
A disinfectant manufacturer adopted Huapack’s 180SP spout pouch filling machine for 500ml medical disinfectant pouches. Third-party acceptance testing recorded filling accuracy within ±0.8ml and a 99.96% pass rate on vacuum decay seal integrity tests, fully satisfying medical device registration packaging regulations.
1.4 Core Advantages Summary of 180SP Spouted Pouch Packing Machine
- Lowest material cost among all our Spouted Pouch Packaging Solutions: Integrate film bag-forming to eliminate premade pouch procurement and transport costs by 20%–30%.
- Fully unmanned automatic workflow: Film unwinding, pouch forming, spout welding, filling and cutting run consecutively with zero manual intervention.
- Customizable metering system: Select piston pumps, flowmeters or servo augers based on raw material traits; liquid tolerance ≤±1.5ml, thick paste tolerance ≤±2g.

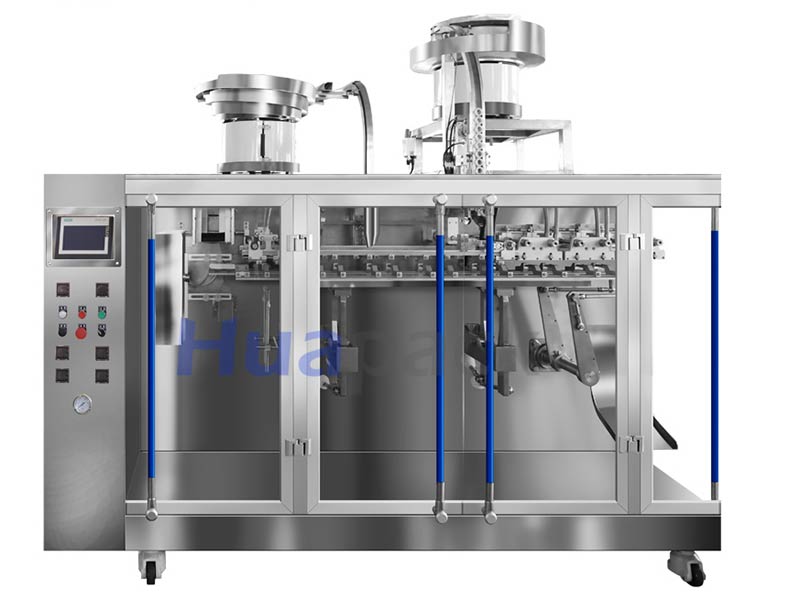

II. 180GP Series: Premade Pouch Spout Pouch Packing Machine for Mid-to-High-End Products
The 180GP unit is a standalone spouted pouch packing machine specially engineered for finished stand-up spouted pouches, serving premium liquid and paste production such as baby puree, functional drinks and luxury sauces. As an important module in Huapack’s full Spouted Pouch Packaging Solutions, this spout pouch filling machine automates the full cycle: pouch feeding → opening → filling → spout sealing → capping.
Key Competitive Advantages
- Premium Shelf Presentation: Supports custom shaped premade pouches (bottle-style, leaf contour, etc.), combining flexible packaging portability with bottle-style spout convenience to lift brand value.
- Intelligent Anti-Waste Detection: The machine halts filling automatically for empty pouches, unopened pouches or defective sealed pouches, avoiding waste of high-cost raw materials like bird’s nest essence and concentrated serum.
- Expandable Functional Modules: Add hanging hole punching, zipper sealing and special contour positioning according to customized packaging demands.
- GMP Sanitary Standard: Full 304/316 stainless steel frame, compatible with CIP auto-cleaning system; fewer manual touchpoints reduce cross-contamination risks.
- Labor & Efficiency Gain: One spout pouch packing machine replaces 4–6 semi-automatic operators; full servo control limits filling error below ±1% with low breakdown frequency and short maintenance downtime.
III. ZGY-3000 Series: Dedicated Spout Pouch Filling Machine for Pre-Welded Spouted Pouches
The ZGY-3000 filling & capping unit is a compact, high-efficiency spout pouch filling machine, exclusively designed for pouches with pre-installed spouts. This equipment focuses on filling and torque-controlled capping, acting as a supplementary unit within our complete Spouted Pouch Packaging Solutions, suitable for juice, milk, jam, jelly and chocolate sauce production.
Standout Features
- Ultra Precise Filling: Servo piston or flowmeter metering achieves ±0.3%–0.5% dosing tolerance, critical for high-value concentrated beverages and cosmetics. The back-suction filling head eliminates residual liquid drips to prevent spout contamination, mold growth and failed capping.
- Constant-Torque Capping Mechanism: Uniform cap tightness across all finished pouches to stop liquid leakage while keeping caps easy for consumers to open. Vibration bowl cap sorting realizes fully automatic cap feeding without manual handling.
- HACCP & Medical-Grade Hygiene: Dead-space-free pipeline design supports full CIP disassembly-free sterilization.
- Eco & Cost Benefit: Spouted pouches cut plastic usage by 60%–70% versus rigid bottles, aligning with global plastic reduction policies and lowering long-term packaging expenditure.
Real Project Case: Guizhou Blueberry Juice Line Using Huapack Spout Pouch Filling Machine
A fruit & vegetable beverage R&D center in Guizhou produces premium 200ml pulped blueberry juice and faced multiple production bottlenecks with old semi-automatic equipment before switching to our professional spouted pouch packing machine.
- Pain Points: Original filling line suffered wide accuracy fluctuation (±5ml); spout welding leakage shortened product shelf life and increased reject volumes.
- Customized Spouted Pouch Packaging Solutions: Deploy the 180SP spout pouch filling machine with particle-adapted piston metering and anti-drip suck-back filling heads, fitted with vibrating spout feeders and constant-temperature heat sealing. Extra UV sterilization and nitrogen flushing modules were added for anti-oxidation production; servo capping torque can be adjusted online via touchscreen.
- Project Outcomes: Filling accuracy optimized to ±1ml; all welded spout seals pass airtightness inspection, extending product shelf life by 30%.
IV. Equipment Comparison & Selection Guide for Spout Pouch Filling Machine & Spouted Pouch Packaging Solutions
spout pouch packing machine to their factory layout, output volume and budget, we compare our three core series of Spouted Pouch Packaging Solutions below:
4.1 180SP Roll Film Spouted Pouch Packing Machine
- Input Material: Raw roll film
- Core Workflow: Pouch forming + spout welding + filling + cutting & sealing
- Best For: Large-batch mass production, cost-sensitive factories, self-manufactured pouch full lines
- Material Cost: Lowest among all spout pouch filling machine models
- Format Change Speed: Fast via mold replacement
- Target Industries: Food & beverage, daily chemicals, pharmaceutical liquids
4.2 180GP Premade Pouch Spout Pouch Packing Machine
- Input Material: Finished premade pouches with spouts pre-attached
- Core Workflow: Pouch feeding → opening → filling → spout sealing
- Best For: Custom special-shaped packaging, high-end brand goods, frequent product formula switching
- Material Cost: Moderate (cost of purchasing finished premade pouches)
- Format Change Speed: Fastest, optional one-touch auto-clamp adjustment
- Target Industries: Baby food, functional premium drinks, high-grade condiments
4.3 ZGY-3000 Spout Pouch Filling Machine (Filling & Capping Only)
- Input Material: Fully formed pouches with pre-welded spouts
- Core Workflow: Precision filling + cap sorting + constant-torque capping
- Best For: Factories already purchasing finished spouted pouches, only needing standalone filling and capping equipment
- Material Cost: Depends on upstream pouch suppliers
- Format Change Speed: Quick adjustment through servo parameter modification
- Target Industries: Fruit juice, jam, skincare liquid, pharmaceutical disinfectants
Quick Purchase Advice
- Prioritize low packaging material cost & mass output: Choose the 180SP roll film spouted pouch packing machine as your core Spouted Pouch Packaging Solutions.
- Require luxury custom pouch shapes and flexible small-batch production: Select the 180GP premade pouch spout pouch packing machine.
- spout pouch filling machine.
Beyond single-unit sales, Huapack delivers one-stop full turnkey Spouted Pouch Packaging Solutions, integrating all three machine types to realize seamless end-to-end production flow for global manufacturers.
V. Conclusion
From raw roll film pouch forming, premade pouch filling to finished pouch capping, Huapack’s full range of spout pouch filling machine and spouted pouch packing machine forms complete, validated Spouted Pouch Packaging Solutions covering food, daily chemical and medical manufacturing sectors.
Whether your factory targets packaging cost reduction, premium shelf product display or pharmaceutical sterile compliance, our technical team can design customized spout pouch packing machine layouts tailored to your production capacity and formula characteristics. Contact Huapack now to get detailed equipment datasheets, competitive quotations and free sample testing service on our professional spout pouch filling machine.
